Applications:

Suction type: Electrically powered drum pump (submersible motor)

Applicable liquids: Diesel, DEF (AdBlue), Water, Kerosene, Antifreeze, Windshield washer fluid, Mild detergents, Agricultural chemicals, Light oils

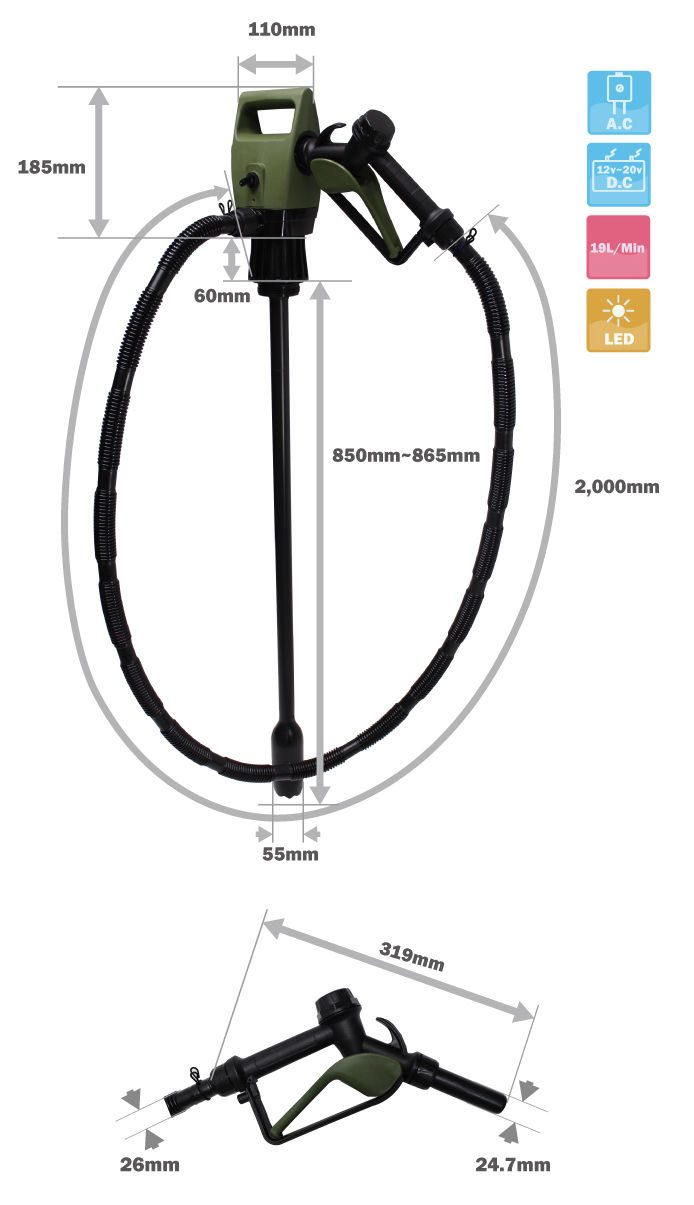

Dimensions:

Specifications:

Delivery volume: About 19 LPM (5.0GPM)

Main Material: PP, PE, POM, NBR

Power Source: DC 12V – 20V

Total Length: 1, 110mm (43.7”)

Suction Tube: Adjustable 850mm (33.5”)~865mm(34.0”)

Discharge Tube: About 2M (79”)

Suction end OD: 55mm (2.0”)

Net Weight: About 2kg (7.05OZ)

Features:

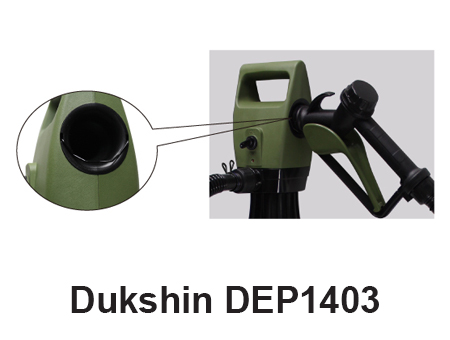

1. Handy Nozzle Holster Built In
2. Drum Bung Adapter

• Improved grip of drum bung adapter 60mm (2.4”) wide grip makes it easy to tighten up and loosen
• Length is adjustable by 15mm (0.6”) according to height of drum
• 2” NPT to 2” buttress adapter (2.5x5) – Optional Part

3. Various power supply units

              DC Cable + Clips

• The crocodile clips connect pump to batteries (cars, vehicles, automobiles, etc.)
• DC cable is about 4m (13.1ft)

AC/DC Adapter

• The power cord to be plugged into an AC outlet
• AC Cable: about 1m (3.3ft)
• DC Cable: about 4m (13.1ft)

Rechargeable Battery

• Fully charged battery can discharge about 900 liters (238 gallons) – based on water
• Includes battery charger
• Approximately three hours to charge battery

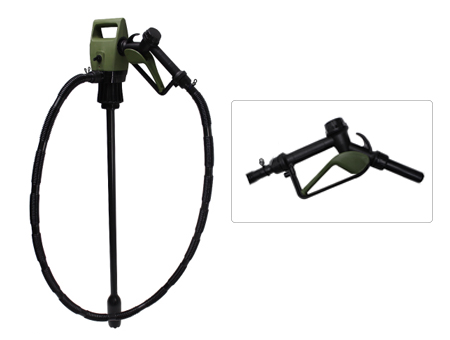

4. Two Types of Nozzle

• Plastic Spout Nozzle
• Stainless Steel Spout Nozzle

5. Swivel Connection

• Great for removing twists

6. Discharge Hoses

• Length: About 2m (78.7”)
• Inner Diameter: 19mm (3/4”)

7. Suction Pipe

• Standard Type (DEP-1403S)

-Suction tube: 850 ~ 865mm (33.5” ~ 34”)

-Applicable on 55 gallon drum

• Telescopic Type (DEP-1403T)

-Suction Tube: 850 ~ 1245mm (33.5” ~ 49”)

-Applicable on 55 gallon drum and IBC Totes

8. Filter-equipped intake end protects the motor from damage due to unfamiliar matters
9. LED light for operating signal
